EARTHQUAKES IN THE ARCTIC AREA
LIST OF FIGURES
Page Fig. 1 Seismicity of the North Pacific and Alaska 3-a Fig. 2 Seismicity of the Arctic Sea and the North Atlantic Ocean 3-b
001 | Vol_I-0346
EA-I. (Beno Gutenberg)

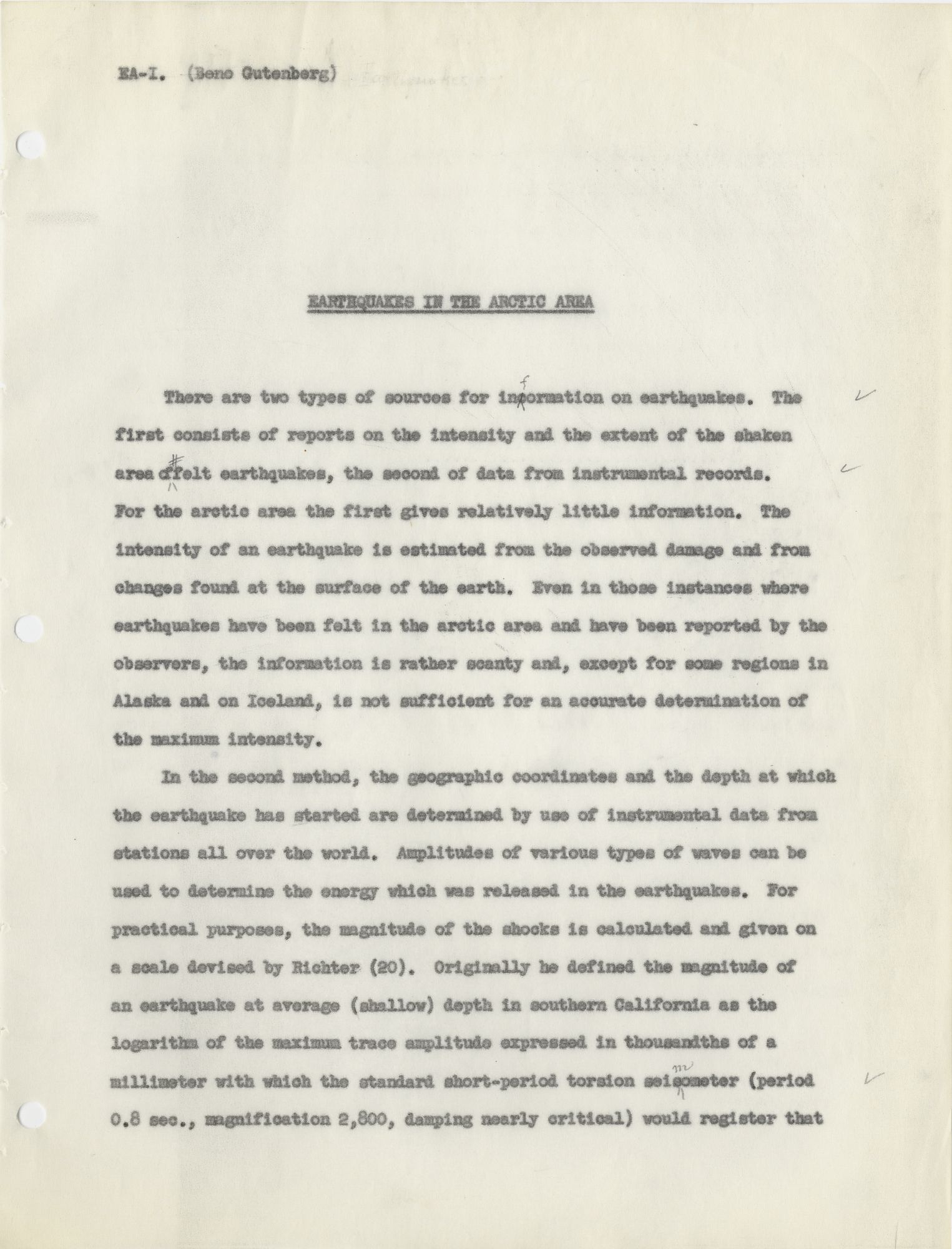

EARTHQUAKES IN THE ARCTIC AREA
There are two types of sources for in c f ormation on earthquakes. The ✓
first consists of reports on the intensity and the extent of the shaken
area of felt earthquakes, the second of data from instrumental records. ✓
For the arctic area the first gives relatively little information. The
intensity of an earthquake is estimated from the observed damage and from
changes found at the surface of the earth. Even in those instances where
earthquakes have been felt in the arctic area and have been reported by the
observers, the information is rather scanty and, except for some regions in
Alaska and on Iceland, is not sufficient for an accurate determination of
the maximum intensity.In the second method, the geographic coordinates and the depth at which
the earthquake has started are determined by use of instrumental data from
stations all over the world. Amplitudes of various types of waves can be
used to determine the energy which was released in the earthquakes. For
practical purposes, the magnitude of the shocks is calculated and given on
a scale devised by Richter (20). Originally he defined the magnitude of
an earthquake at average (shallow) depth in southern California as the
logarithm of the maximum trace amplitude expressed in thousandths of a
millimeter with which the standard short-period torsion seis m ometer (period ✓
0.8 sec., magnification 2,800, damping nearly critical) would register that

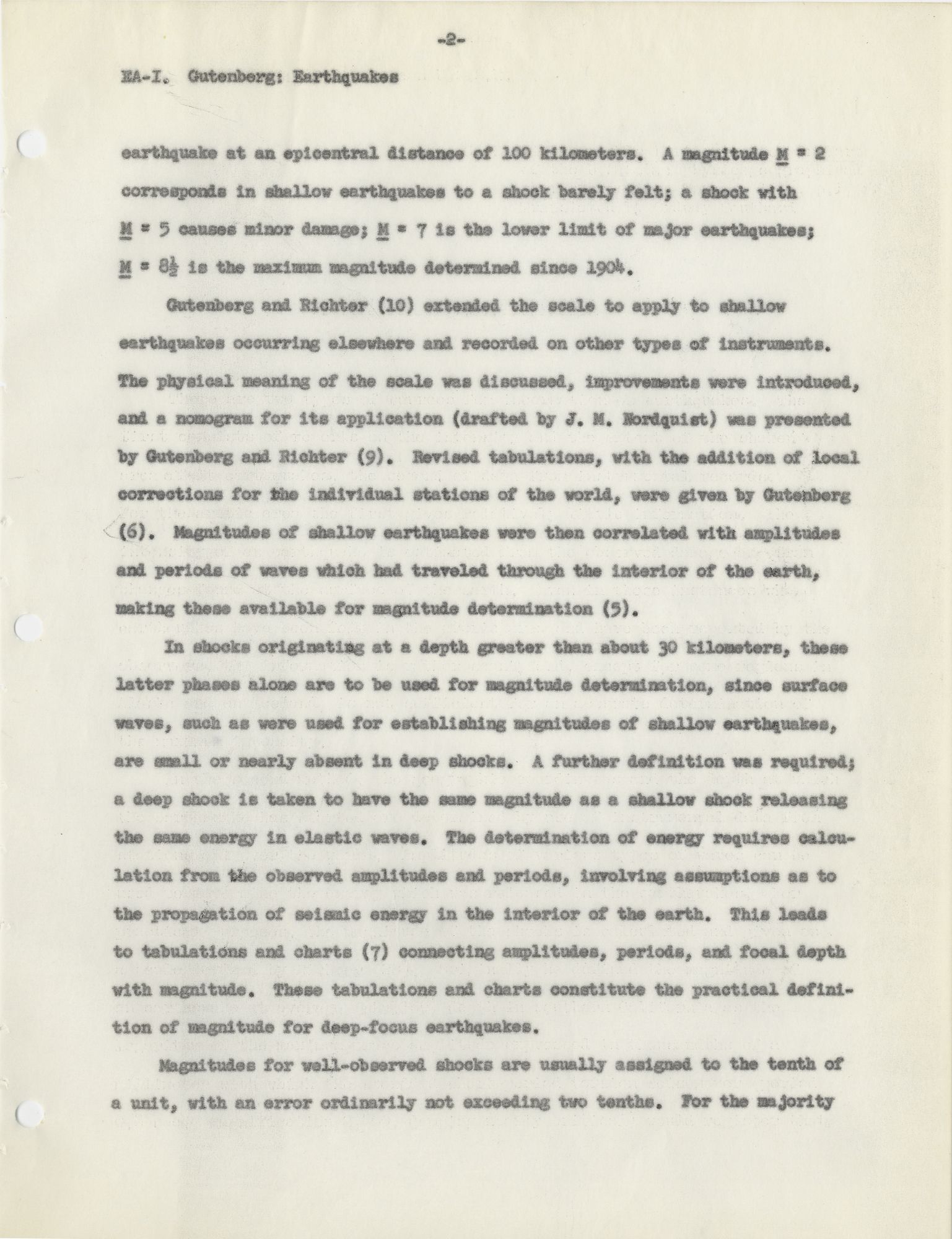

002 | Vol_I-0347
EA-I. Gutenberg: Earthquakes
earthquake at an epicentral distance of 100 kilometers. A magnitude M = 2
corresponds in shallow earthquakes to a shock barely felt; a shook with
M = 5 causes minor damage; M = 7 is the lower limit of major earthquakes;
M = 8½ is the maximum magnitude determined since 1904.Gutenberg and Richter (10) extended the scale to apply to shallow
earthquakes occurring elsewhere and recorded on other types of instruments.
The physical meaning of the scale was discussed, improvements were introduced,
and a nomogram for its application (drafted by J. M. Nordquist) was presented
by Gutenberg and Richter (9). Revised tabulations, with the addition of local
corrections for the individual stations of the world, were given by Gutenberg
(6). Magnitudes of shallow earthquakes were then correlated with amplitudes
and periods of waves which had traveled through the interior of the earth,
making these available for magnitude determination (5).In shocks originating at a depth greater than about 30 kilometers, these
latter phases alone are to be used for magnitude determination, since surface
waves, such as were used for establishing magnitudes of shallow earthquakes,
are small or nearly absent in deep shocks. A further definition was required;
a deep shock is taken to have the same magnitude as a shallow shock releasing
the same energy in elastic waves. The determination of energy requires calcu–
lation from the observed amplitudes and periods, involving assumptions as to
the propagation of seismic energy in the interior of the earth. This leads
to tabulations and charts (7) connecting amplitudes, periods, and focal depth
with magnitude. These tabulations and charts constitute the practical defini–
tion of magnitude for deep-focus earthquakes.Magnitudes for well-observed shocks are usually assigned to the tenth of
a unit, with an error ordinarily not exceeding two tenths. For the majority

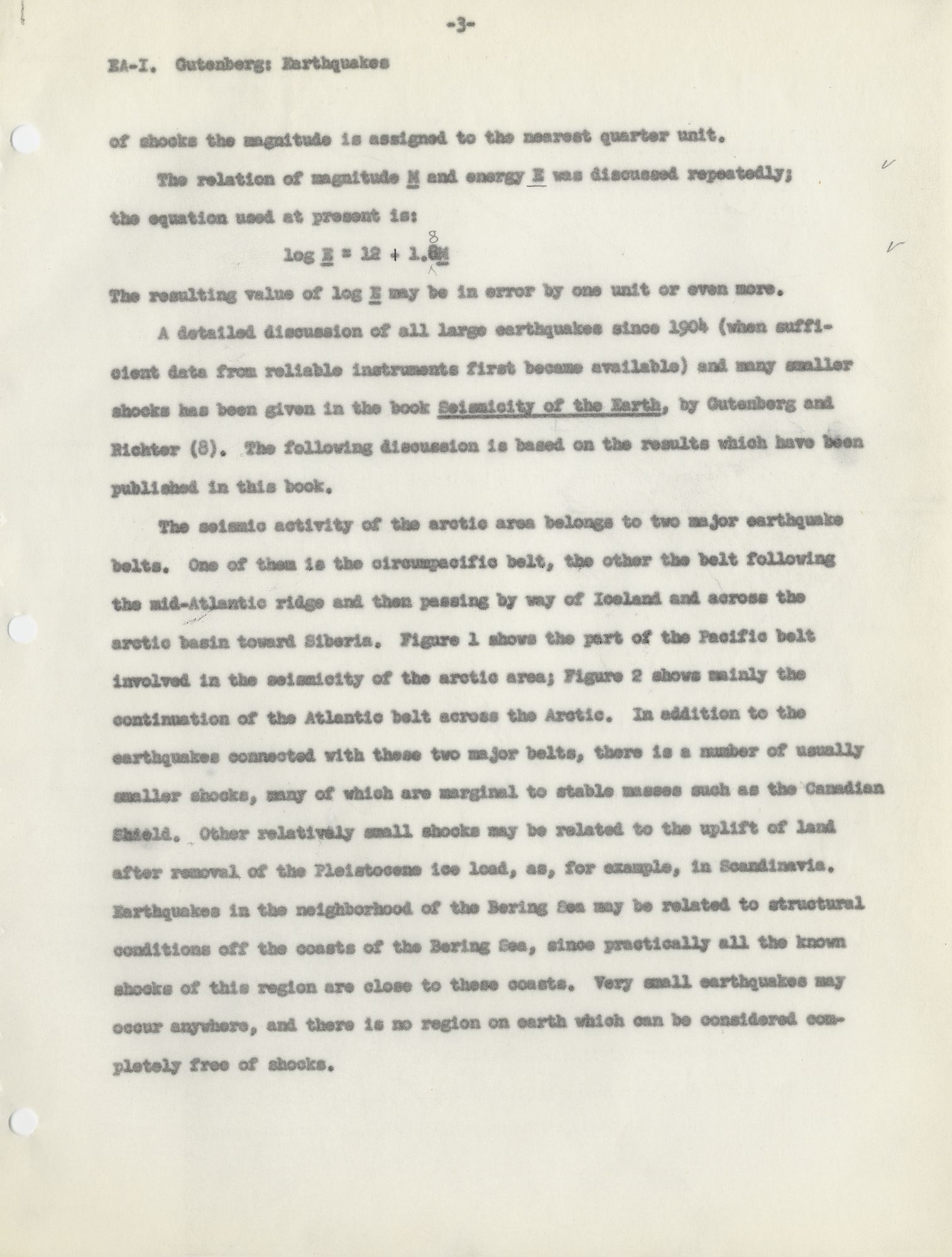

003 | Vol_I-0348
EA-I. Gutenberg: Earthquakes
of shocks the magnitude is assigned to the nearest quarter unit.The relation of magnitude M and energy E was discussed repeatedly; ✓
the equation used at present is:
log E = 12 −+ 1.[?]8M ✓
The resulting value of log E may be in error by one unit or even more.A detailed discussion of all large earthquakes since 1904 (when suffi–
cient data from reliable instruments first became available) and many smaller
shocks has been given in the book Seismicity of the Earth , by Gutenberg and
Richter (8). The following discussion is based on the results which have been
published in this book.The seismic activity of the arctic area belongs to two major earthquake
belts. One of them is the circumpacific belt, the other the belt following
the mid-Atlantic ridge and then passing by way of Iceland and across the
arctic basin toward Siberia. Figure 1 shows the part of the Pacific belt
involved in the seismicity of the arctic area; Figure 2 shows mainly the
continuation of the Atlantic belt across the Arctic. In addition to the
earthquakes connected with these two major belts, there is a number of usually
smaller shocks, many of which are marginal to stable masses such as the Canadian
Shield. Other relatively small shocks may be related to the uplift of land
after removal of the Pleistocene ice load, as, for example, in Scandinavia.
Earthquakes in the neighborhood of the Bering Sea may be related to structural
conditions off the coasts of the Bering Sea, since practically all the known
shocks of this region are close to these coasts. Very small earthquakes may
occur anywhere, and there is no region on earth which can be considered com–
pletely free of shocks.
003a | Vol_I-0349
Fig. 1 Seismicity of the North Pacific and Alaska.
003b | Vol_I-0350
Fig. 2 Seismicity of the Arctic Sea and the North Atlantic Ocean.
004 | Vol_I-0351
EA-I. Gutenberg: Earthquakes
The main seismological stations on which data concerning the seismicity
of the arctic area are based are those in northern Europe, especially the
stations at Bergen, Norway, and Uppsala, Sweden; the Soviet stations, especially
the station at Pulkovo, which was destroyed during the war, and the station
at Sverdlovsk, near the Urals; stations in the northern part of Japan; the
United States stations at College and Sitka in Alaska; Canadian stations at
Saskatoon and Ottawa (with a number of subsidiary stations); the stations at
Scoresby Sound and Ivigtut, Greenland, which are operated by the central station
in Copenhagen, and the station in Reykjavik, Iceland.Earthquakes are usually classified in three groups: shallow shocks at
depths not exceeding 60 km. (normally about 20 km); shocks at intermediate
depth between 60 and 300 km.; and finally very deep shocks with depths greater
than 300 km. and a maximum observed depth of slightly in excess of 700 km.
Shocks at depths greater than about 60 km. have been found thus far only in
the circumpacific belt and the Alpid belt. Shocks at depths greater than
300 km. are known only in connection with the Pacific belt. There are no
such shocks in the arctic area proper, the nearest being southwest of
Kamchatka; however, a number of shocks at intermediate depth have been
located in Kamchatka and also to the north of the shallow belt which follows
the Aleutians into the Alaska Peninsula. These shocks are marked by triangles
on Figures 1 and 2. In general, such shocks occur approximately along the same
lines as the active volcanoes. Lists of the larger shocks which have been
located in the arctic area since 1904 are given in the Seismicity of the Earth .
They are listed there mainly under region numbers 1, 2, 40, and 42.The Aleutian arc extends from the Commander Islands to central Alaska.
In general, seismicity at shallow depth follows the northern concave side
005 | Vol_I-0352
EA-I. Gutenberg: Earthquakes
of the Aleutian Trench. Activity is lower in the area of the Commander
Islands. Near the east end of the arc there is higher activity in the
vicinity of Kenai Peninsula (near 150° W.). The arc as a whole is one of
the more active sectors of the Pacific belt, although its seismicity is
exceeded by those of Japan, Mexico, the Solomon Islands, and others. The
largest shocks in the region of Kamchatka and the Aleutian arc are the
following: several shocks on June 25, 1904, (near 52° N., 159° E.) off
Kamchatka (21), two of which had magnitudes of about 8; shocks on August 17,
1906, (51° N., 179° E.) (22), magnitude about 8; and November 10, 1938,
(55°30′ N., 158 W.) (16), magnitude 8.3.Over the whole active length of the arc, from about 175° E. to 145° W.,
shocks are frequently in the range from 50 to 80 km. in depth, which crosses
the boundary between shallow and intermediate earthquakes. Intermediate
shocks at depths from 100 to 170 km. occur along the north side of the
island arc and the Alaska Peninsula from 176° to 160° W. No deeper shocks
are known in this region.Macroseismic data for most of the Aleutian arc consist of shocks felt
on shipboard. Numerous shocks are reported felt at Dutch Harbor on
Unalaska, and in the regions of Seward and Fairbanks.The Pacific arcs show characteristic feathers. Staring from the convex
side of the arc, there is usually: ( 1 ) an oceanic trench or foredeep; ( 2 )
shallow earthquakes and negative gravity anomalies, occurring in a narrow belt
on the concave side of the submarine trough; frequently the ocean bottom here
rises in a ridge, which may emerge into small nonvolcanic islands; ( 3 ) maximum
of positive gravity anomalies; earthquakes at depths near 60 km., frequently
large; ( 4 ) the principal structural arc, of Late Cretaceous or of Tertiary
006 | Vol_I-0353
EA-I. Gutenberg: Earthquakes
age, with active or recently extinct volcanoes; shocks at depths of the
order of 100 km.; gravity anomalies decreasing; (5) a second structural
are; volcanism older and usually in a late stage; shocks at depths of
200-300 km.; and ( 6 ) a belt of shocks at depths of 300-700 km.Of the characteristic Pacific arc features, ( 1 ) is the Aleutian Trench,
which extends from about 170° E. south of the island arc and the Alaska
Peninsula into the Gulf of Alaska almost to Yakutat Bay (17, with maps and
profiles). Feature ( 2 ) is expressed in the occurrence of shallow earthquakes
between the island arc and the Trench; it is more easily distinguishable from
( 3 ) and ( 4 ) at the east, where there is an outer chain of nonvolcanic islands
off the Alaska Peninsula, accompanied by some shallow seismicity. Feature
( 3 ) is indicated by earthquakes at depths near 70 km.; it extends along the
whole arc; in the main western portion it is closely limited between the
belt of shallow earthquakes and the volcanic islands. At the eastern end,
in the region of Kenai Peninsula and Cook Inlet, these shocks occur well to
the southeast of the volcanic line. Feature ( 4 ) is this volcanic line, in–
cluding the entire chain of the Aleutian Islands and extending up the coast
of the Alaska Peninsula, accompanied by shocks at depths of 100 km. and
deeper. Of these, the most westerly now know occurred on February 4, 1946,
near 53° N., 176° W., at a depth of 150 km. Features ( 5 ) and ( 6 ) are not
represented.The shallow shocks in the interior of Alaska are connected with an
interior structure which is related to the Pacific coastal arc as the Rocky
Mountains are related to the Pacific coast ranges.In the region of College, Alaska (Fig. 1), the seismic belt turns to
the southeast, crosses the coastal area to the north of Sitka, and continues

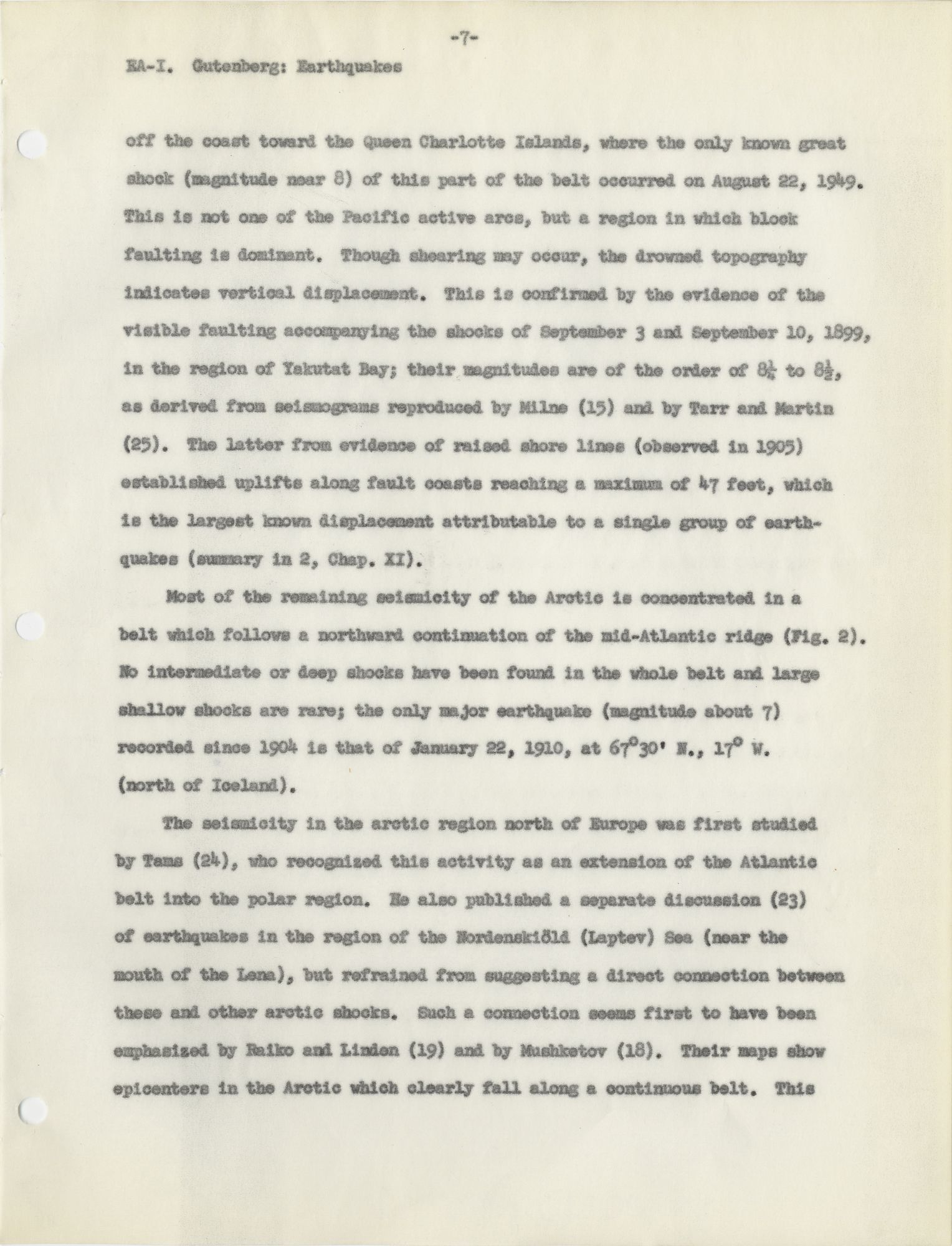

007 | Vol_I-0354
EA-I. Gutenberg: Earthquakes
off the coast toward the Queen Charlotte Islands, where the only known great
shock (magnitude near 8) of this part of the belt occurred on August 22, 1949.
This is not one of the Pacific active arcs, but a region in which block
faulting is dominant. Though shearing may occur, the drowned topography
indicates vertical displacement. This is confirmed by the evidence of the
visible faulting accompanying the shocks of September 3 and September 10, 1899,
in the region of Yakutat Bay; their magnitudes are of the order of 8¼ to 8½,
as derived from seismograms reproduced by Milne (15) and by Tarr and Martin
(25). The latter from evidence of raised shore lines (observed in 1905)
established uplifts along fault coasts reaching a maximum of 47 feet, which
is the largest known displacement attributable to a single group of earth–
quakes (summary in 2, Chap. XI).Most of the remaining seismicity of the Arctic is concentrated in a
belt which follows a northward continuation of the mid-Atlantic ridge (Fig. 2).
No intermediate or deep shocks have been found in the whole belt and large
shallow shocks are rare; the only major earthquake (magnitude about 7)
recorded since 1904 is that of January 22, 1910, at 67°30′ N., 17° W.
(north of Iceland).The seismicity in the arctic region north of Europe was first studied
by Tams (24), who recognized this activity as an extension of the Atlantic
belt into the polar region. He also published a separate discussion (23)
of earthquakes in the region of the Nordenskiöld (Laptev) Sea (near the
mouth of the Lena), but refrained from suggesting a direct connection between
these and other arctic shocks. Such a connection seems first to have been
emphasized by Raiko and Linden (19) and by Mushketov (18). Their maps show
epicenters in the Arctic which clearly fall along a continuous belt. This
008 | Vol_I-0355
EA-I. Gutenberg: Earthquakes
map has been reproduced by Heck (10a). In figure 2 every adequately located
shock from Spitsbergen to the Lena has been included; between Iceland and
Spitsbergen only the better located shocks are shown.Shocks have been reported felt on Spitsbergen and Jan Mayen. Iceland
has a long history of destructive earthquakes.The most important shocks which remain seem to be marginal to the
Canadian Shield. Three groups of such shocks are known: to the southeast,
in the region of the St. Lawrence River; to the northeast, in Baffin Bay;
to the northwest, in the region of the mouth of the Mackenzie River.The long-established station at Ottawa was later supplemented by
auxiliary stations at Seven Falls and Shawinigan Falls, so that the south–
eastern group of shocks is well observed. These shocks are also recorded at
stations in the northeastern United States. Many small shocks have been
located in this area by the workers at Ottawa and by the Northeastern
Seismological Association. The catalogue in the Seismicity of the Earth
includes only those recorded at more distant stations. A great earthquake
in 1663 was violent near Three Rivers (roughly 46°30′ N., 72°30′ W.; Lefebvre,
1928). The shocks of 1925 and 1935 had depths near 60 km.; the epicenter of
the latter is well within the margin of the Canadian Shield.The rather large shock (magnitude 7½) off Newfoundland on November 18, 1929
(3; 11; 12), is an eastern member of the St. Lawrence group of shocks.The northeastern marginal shocks, in Davis Strait and Baffin Bay, are
more remote from the American stations, and are better recorded in Europe,
within close range of the Greenland stations (Ivigtut and Scoresby Sound).
The shock of November 20, 1944, (14; 19), of magnitude 7.3 is a good instance
of a major earthquake in a region not previously considered active. Small
009 | Vol_I-0356
EA-I. Gutenberg: Earthquakes
shocks have often been felt on the west coast of Greenland (24) and Tertiary
faulting has been found there (1; 13).Three shocks of magnitude 6½ to 6¾ (November 16, 1920, May 29 and
June 5, 1940) are referred to the northwestern Mackenzie River group. The
station at College (near Fairbanks, Alaska) now makes it more probable that
shocks in this remote region will not be overlooked.The area in the Arctic Sea, north of Alaska, is clearly nonseismic.
The possibility has been considered that this is an area with structure
similar to that in the Pacific basin.Earthquakes in coastal areas occasionally produce tsunamis or tidal waves
which are scarcely noticeable on the open waters, but may produce considerable
damage if they arrive in shallow water, where their height increases rapidly.The history of tsunamis originating in the Aleutian arc is necessarily
short, since in most cases instrumental data are required to locate the
corresponding earthquake. That of November 10, 1938, produced only a compara–
tively small wave, observed at Hilo, Hawaii, and recorded elsewhere on tide
gages; but the smaller shock of April 1, 1946, gave rise to a great wave which
was destructive at Hilo and rose to observable heights on distant coasts, as
in California and Peru (4).The Yakutat Bay earthquake of 1899, with the largest known vertical
fault displacement (47 ft.) produced only a locally destructive wave. Little
is known about tsunamis in the Arctic Sea.Beno Gutenberg
010 | Vol_I-0357
EA-I. Gutenberg: Earthquakes
BIBLIOGRAPHY
1. Born, A. “Der geologische Aufbau der Erde,” Handbuch der Geophysik.
Berlin, Borntraeger, 1933. Vol.2, pp.565-867.2. Davi d son, Charles. Great Earthquakes . London, Murby, 1936. —
3. Doxsee, W.E. The Grand Banks Earthquake of November 18, 1929 . Ottawa,
1948, Ottawa. Dom.Oba. Publ . vol.7, no.7.4. Green, C.K. “Seismic sea wave of April 1, 1946, as recorded on tide gages,”
Amer.Geophys.Un. Trans. , vol.27, pp.490-500, 1946. —5. Gutenberg, Beno. “Amplitudes of P, PP, and S and magnitude of shallow
earthquakes,” Seism.Soc.Amer. Bull . vol.35, pp.57-69, 1945.6. ----. “Amplitudes of surface waves and magnitudes of shallow earthquakes,”
Ibid . vol.35, pp.3-12, 1945.7. ----. “Magnitude determination for deep-focus earthquakes,” Ibid . vol.35,
pp.117-30, 1945.8. ----. Seismicity of the Earth, and Associated Phenomena . Princeton, N.J.,
Princeton University press, 1949.9. ----, and Richter, C.F. “Earthquake magnitude, intensity, energy and
acceleration,” Seism.Soc.Amer. Bull . vol.32, pp.163-91, 1942.10. ----, and ----. “On Seismic waves,” Beiträge zur Geophys . vol.45,
pp.280-360, 1936.10a. Heck, N.H. “The role of earthquakes and the seismic method in submarine
geology,” Amer.Phil.Soc. Proc . vol.79, pp.97-108, 1938.11. Hodgson, E.A., and Doxsee, W.W. “The Grand Banks earthquake, November 18,
1929,” Seism.Soc.Amer.E.Sect. Proc . 1930, pp.72-79.12. Keith, Arthur. “The Grand Banks earthquake,” [ ?] Ibid . 1930,
Supplement, pp.1-15.13. Koch, Lauge. Stratigraphy of Greenland . Copenhagen, Reitzel, 1929.
Medd.Grønland vol.73, no.2.14. Lee, A.E. On the Travel of Seismic Waves from the Baffin Bay Earthquake of
November 20, 1933 . London, 1937. Geophys.Mem . no. 74.15. M Milne, John. “Analyses of large earthquakes recor [?] ed in 1899,”
Brit.Ass.Adv.Sci. Rep . vol.70, pp.60-74, 1900.
011 | Vol_I-0358
EA-I. Gutenberg: Earthquakes
16. Mukherjee, S.M., and Rangaswami, M.R. “On the very large Pacific earth–
quake of November 10, 1938,” Seism.Soc.Amer. Bull . vol.31,
pp.121-28, 1941.17. Murray, H.W. “Profiles of the Aleutian Trench,” Geol.Soc.Amer. Bull .
vol.56, pp.757-82, 1945.18. Mushketov, D. “O seismichnosti Arktiki.” (Seismicity of the Arctic.)
Akad.Nauk. Seismologicheskii Inst. Trudy no.61, pp.9-15, 1935. In
Russian with English summary.19. Raiko, N.V., and Linden, N.A. “O zemletriasenii 20 XI 1933 g. v
Baffinovom zalive i raspredelenii seismicheskikh ochagov v
Arktike.” (On the earthquake of November 20, 1933, in the Baffin
Bay and on the distribution of epicenters in the Arctic.) Akad.
Nauk. Seismologicheskii Inst. Trudy no.61, pp.1-8, 1935. In
Russian with English summary.20. Richter, C.F. “An instrumental earthquake magnitude scale,” Seism.Soc.
Amer. Bull . vol.25, pp.1-32, 1935.21. Rosenthal, Elmar. “Lee tremblements de terre du Kamtchatka en 1904,”
Association Internationale de Sismologie. Bureau Central,
Publications. S e é rie A. M e é m. Strassburg, 1907, pp.31-52.22. Rudolph, Emil, and Tams, Ernst. Seismogramme des Nordpazifischen und
Südamerikanischen Erdbebens am 16, August 1906 . Strassburg,
Du Mont Schauberg, 1907.23. Tams, Ernst. “Erdbeben im Gebiet der Nordenskiöld See,” Beiträge zur
Geophys . vol.17, pp.325-31, 1922.24. ----.“Die seismischen Verh a ä ltnisse des europäischen Nordmeeres,”
Centralblatt für Min.Geol.Pal a ä ont . no.13, pp.385-97, 1922.25. Tarr, R.S., and Martin, Lawrence. The Earthquakes at Yakutat Bay, Alaska ,
in September, 1899 . Wash.,D.C., G.P.O., 1912. U.S.Geol.Surv.
Prof.Pap . 69.Beno Gutenberg
